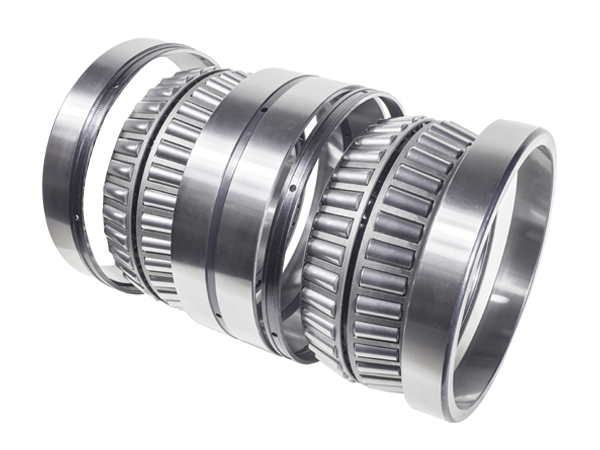

四列圓錐滾子軸承英制系列

四列圓錐滾子軸承，按接觸角的大小劃分有：小角（9°＜a≤25°）和大錐角（＞25°）之分。圓錐滾子軸承的軸向承載能力取決于接觸角a，既外圈的滾道角度，接觸角a越大，軸向承載能力越大。

咨詢熱線：13861477666

注：詢購請選擇型號

產品尺寸與參數

FRC1001

FRC1002

FRC1003

FRC0001

FRC0002

FRC0003

FRC0004

FRC0005

FRC0006

FRC0007

FRC0008

FRC0009

FRC0010

FRC0011

FRC0012

FRC0013

FRC0014

FRC0015

FRC0016

FRC0017

FRC0018

FRC0019

FRC0020

FRC0022

FRC0023

FRC0024

FRC0025

FRC0026

FRC0027

FRC0028

FRC0029

FRC0030

FRC0031

FRC0032

FRC0033

FRC0034

FRC0035

FRC0036

FRC0037

FRC0038

FRC0039

FRC0040

FRC0041

FRC0042

FRC0043

FRC0044

FRC0045

FRC0046

FRC0047

FRC0048

FRC0049

FRC0050

FRC0051

FRC0052

FRC0053

FRC0054

FRC0055

FRC0056

FRC0057

FRC0058

FRC0059

FRC0060

FRC0061

FRC0062

FRC0063

FRC0064

FRC0065

FRC0066

FRC0067

FRC0068

FRC0069

FRC0070

FRC0071

FRC0072

FRC0073

FRC0074

FRC0075

FRC0076

FRC0077

FRC0078

FRC0079

FRC0080

FRC0081

FRC0082

FRC0083

FRC0084

FRC0085

FRC0086

FRC0087

FRC0088

FRC0089

FRC0090

FRC0091

FRC0092

FRC0093

FRC0094

FRC0095

FRC0096

FRC0097

FRC0098

FRC0099

FRC0100

FRC0101

FRC0102

FRC0103

FRC0104

FRC0105

FRC0106

FRC0107

FRC0108

FRC0109

FRC0110

FRC0111

FRC0112

FRC0113

FRC0114

FRC0115

FRC0116

FRC0117

FRC0118

FRC0119

FRC0120

FRC0121

FRC0122

FRC0123

FRC0124

FRC0125

FRC0126

FRC0127

FRC0128

FRC0129

FRC0130

FRC0131

FRC0132

FRC0133

FRC0134

FRC0135

FRC0136

FRC0137

FRC0138

FRC0139

FRC0140

FRC0141

FRC0142

FRC0143

FRC0144

FRC0145

FRC0146

FRC0147

FRC0148

FRC0149

FRC0150

FRC0151

FRC0152

FRC0153

FRC0154

FRC0155

FRC0156

FRC0157

FRC0158

FRC0159

FRC0160

FRC0161

FRC0162

FRC0163

FRC0164

FRC0165

FRC0166

FRC0167

FRC0168

FRC0169

FRC0170

FRC0171

FRC0172

FRC0173

FRC0174

FRC0175

FRC0176

FRC0177

FRC0178

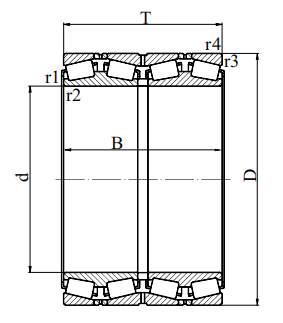

查看	型號	d	D	B	T	Cr	Cor	e	Y₁	Y₂	Yo	內圈	軸承	SKF	TMKEN
查看	型號	外形尺寸 mm				基本額定載荷KN		計算參數				參考重量kg		參考國外軸承代號
	FRC1001	120.650	174.625	141.288	139.703	737	1560	0.33	2.0	3.0	2.0		11.2	BT4B332406/HA1	M244749D/10/10D
	FRC1002	127.000	182.562	158.750	158.750	781	1760	0.30	2.3	3.4	2.2		14.5	BT4B330880/HA1	48290DW/20/20D
	FRC1003	139.700	200.025	157.162	160.338	858	2080	0.33	2.0	3.0	2.0		15.5	331138A	48680D/20/20D
	FRC0001	152.400	222.250	174.625	174.625	1120	2500	0.33	2.0	3.0	2.0		23.2	331329	M231649D/10/10CD
	FRC0002	165.100	225.425	165.100	168.275	858	2200	0.37	1.8	2.7	1.8		20.5	330835C	46791DW/20/21D
	FRC0003	177.800	247.650	192.088	192.088	1230	3000	0.44	1.5	2.3	1.4		29.0	331480	67791DW/20/21D
	FRC0004	187.325	269.875	211.138	211.138	1650	3800	0.33	2.0	3.0	2.0		41.0	331382	M2338849DW/10/10CD
	FRC0005	190.500	266.700	187.325	188.912	1340	3250	0.48	1.4	2.1	1.4		33.5	331249	67885DW/20/20CD
	FRC0006	198.438	284.162	225.425	225.425	1790	4150	0.33	2.0	3.0	2.0		47.5	330899A	M240648D/11/11D
	FRC0007	205.000	320.000	203.500	203.500	1900	3650	0.46	1.5	2.2	1.4		54.5	BT4B328065/HA1
	FRC0008	206.375	282.575	282.575	190.500	1300	3350	0.50	1.5	2.0	1.3		36.5	331486	67986DW/20/21CD
	FRC0009	220.000	320.000	200.000	200.000	1760	4050	0.33	2.0	3.0	2.0		54.0	BT4B328348/HA1
	FRC0010	220.000	340.000	303.500	303.500	3080	6700	0.43	1.6	2.3	1.6		100	BT4B328003/HA1
	FRC0011	220.662	314.325	239.712	239.712	2200	5200	0.33	2.0	3.0	2.0		61.5	331156	M244249DW/10/10CD
	FRC0012	228.600	311.150	200.025	200.025	1760	4050	0.33	2.0	3.0	2.0		43.5	BT4B332637/HA1	LM245149DW/10/10D
	FRC0013	234.950	327.025	196.850	196.850	1540	4250	0.40	1.7	2.5	1.6		54.0	331399	8576DW/20/20CD
	FRC0014	240.000	338.000	248.000	248.000	2380	5500	0.40	1.7	2.5	1.6		70.0	BT4B328015/HA1
	FRC0015	240.000	360.000	308.500	308.500	3300	7350	0.33	2.0	3.0	2.0		110	BT4B328508
	FRC0016	241.224	355.498	228.600	228.600	2160	5000	0.35	1.9	2.9	1.8		81.5	331787	EE127094D/138/139D
	FRC0017	241.478	349.148	228.600	349.148	2160	5000	0.35	1.9	2.9	1.8		74.5	330782A	EE127097DW/135/136D
	FRC0018	244.475	327.025	193.675	193.675	1830	4300	0.33	2.0	3.0	2.0		46.0	330862B	LM247748DW/10/10D
	FRC0019	244.475	381.000	304.800	304.800	2970	6700	0.52	1.3	1.9	1.3		130	BT4B328690/HA1	EE126096DW/150/151D
	FRC0020	245.000	380.000	255.500	254.000	2640	5600	0.44	1.5	2.3	1.4		105	331398
	FRC0022	247.650	400.050	249.235	253.995	2920	6300	0.40	1.7	2.5	1.6		120	614096B	EE220975DW/1575/1576D
	FRC0023	254.000	358.775	269.875	269.875	2860	7100	0.33	2.0	3.0	2.0		88.0	331275A	M249748DW/10/10CD
	FRC0024	260.000	440.000	298.500	298.500	3910	7350	0.54	1.5	1.8	1.3		190	BT4B328551/HA1
	FRC0025	260.350	422.275	314.325	317.500	4130	8000	0.33	2.0	3.0	2.0		180	BT4B331487G/HA1	HM252349DGW/10/10D
	FRC0026	266.700	355.600	230.188	228.600	2050	5600	0.37	1.8	2.7	1.8		63.5	330822B	LM451349DW/10/10CD
	FRC0027	269.875	381.000	282.575	282.575	3080	7500	0.33	2.0	3.0	2.0		105	BT4B331168B	M252349D/10/10CD
	FRC0028	276.225	393.700	269.878	269.875	2970	6400	0.40	1.7	2.5	1.6		100	331288	EE275109DW/55/56CD
	FRC0029	279.400	381.000	269.875	269.875	2920	7500	0.35	1.9	2.9	1.8		91.0	BT4B328293/HA1
	FRC0030	279.400	393.700	269.875	269.875	3030	7100	0.37	1.8	2.7	1.8		102	BT4B332390/HA1	EE135111DW/55/56D
	FRC0031	279.578	380.898	244.475	244.475	2290	6400	0.43	1.6	2.3	1.6		86.0	330540A	LM654644DW/10/10CD
	FRC0032	280.000	380.000	290.000	290.000	3030	8000	0.28	2.4	3.6	2.5		95.0	BT4B328613G/HA1
	FRC0033	280.000	395.000	288.000	288.000	3470	8300	0.28	2.4	3.6	2.5		110	BT4B328807/HA1
	FRC0034		420.000	250.000	250.000	3190	6550	0.35	1.9	2.9	1.8		115	BT4B328664/HA1
	FRC0035		460.000	324.000	324.000	4680	9300	0.35	1.9	2.9	1.8		215	BT4B332441G/HA1
	FRC0036	285.750	380.898	244.475	244.475	2290	6400	0.43	1.6	2.3	1.6		81.0	330337A	LM654648DW/10/10CD
	FRC0037	292.100	422.275	269.875	2693875	3520	8000	0.31	2.2	3.3	2.2		125	331968	EE330116DGW/66/67D
	FRC0038	300.000	440.000	280.988	279.400	3190	7800	0.43	1.6	2.3	1.6		145	BT4B328725G/HA1
	FRC0039	300.000	460.000	388.500	388.500	5390	125000	0.33	2.0	3.0	2.0		240	BT4B332472
	FRC0040	300.038	422.275	311.150	311.150	3800	9500	0.33	2.0	3.0	2.0		140	331287	HM256849D/10/10CD
	FRC0041	304.648	438.048	280.990	279.400	3470	8000	0.48	1.4	2.1	1.4		135	331492	M757448DW/10/10D
	FRC0042	304.800	419.100	269.875	269.875	3360	8150	0.33	2.0	3.0	2.0		110	BT4B331687/HA1	M257149DW/10/10D
	FRC0043	304.800	482.600	365.125	377.825	5010	10400	0.35	1.9	2.9	1.8		265	330693C
	FRC0044	304.902	412.648	266.700	266.700	3080	8000	0.31	2.2	3.3	2.2		105	330758A	M257248DDW/10/10D
	FRC0045	317.500	422.275	269.875	269.875	3080	8150	0.31	2.2	3.3	2.2		105	330870A	LM258648DW/10/10D
	FRC0046	317.500	438.150	276.225	276.225	3520	8300	0.43	1.6	2.3	1.6		125	BT4B334020G/HA4
	FRC0047	317.500	447.675	327.025	327.025	4400	10800	0.33	2.0	3.0	2.0		165	BT4B331161AG/HA1	HM259049D/10/10CD
	FRC0048	330.200	444.500	301.625	301.625	3690	9650	0.33	2.0	3.0	2.0		135	BT4B332647G/HA1	M260149DW/10/10D
	FRC0049	330.302	438.023	247.650	254.000	2600	7350	0.46	1.5	2.2	1.4		110	331664	EE138131D/72/73XD
	FRC0050	333.375	469.900	342.900	342.900	4570	11400	0.33	2.0	3.0	2.0		190	331381	HM261049DW/10/10CD
	FRC0051	340.000	520.000	323.500	323.500	5230	10400	0.30	2.3	3.4	2.2		245	BT4B332963/HA1
	FRC0052	342.900	571.500	342.540	342.900	6270	11600	0.33	2.0	3.0	2.0		365	BT4B331553/HA1
	FRC0053	343.052	457.098	254.000	254.000	2810	6800	0.48	1.4	2.1	1.4		110	330661C	LM761649DW/10/10D
	FRC0054	346.075	488.950	358.775	358.775	4950	12500	0.33	2.0	3.0	2.0			331228	HM262749D/10/10CD
	FRC0055	347.662	469.900	260.350	260.350	3800	10200	0.33	2.0	3.0	2.0		130	BT4B331077AG/HA1	LM262449DW/10/10D
	FRC0056	347.662	469.900	292.100	292.100	3800	10200	0.33	2.0	3.0	2.0		150	331092A	M262449DW/10/10D
	FRC0057	355.000	490.000	316.000	316.000	4130	11000	0.33	2.0	3.0	2.0		185	331508
	FRC0058	355.600	482.600	265.112	269.875	3190	8000	0.48	1.4	2.1	1.4		140	330662AG	LM763449DW/10/10D
	FRC0059	355.600	488.950	317.500	317.500	4130	11000	0.33	2.0	3.0	2.0		195	331271	M263349DW/10/10D
	FRC0060	360.000	510.000	380.000	380.000	5610	14300	0.33	2.0	3.0	2.0		255	332059
	FRC0061	360.000	540.000	280.000	280.000	4400	9000	0.44	1.5	2.3	1.4		230	BT4B328159/HA1
	FRC0062	368.300	523.875	382.588	382.588	5380	15000	0.33	2.0	3.0	2.0		275	331159A	HM265049DW/10/10CD
	FRC0063	374.650	501.650	250.825	260.350	3360	8150	0.48	1.4	2.1	1.4		140	BT4B332188/HA1	LM765149DW/10/10D
	FRC0064	380.000	560.000	325.000	325.000	5500	11800	0.31	2.2	3.3	2.2		265	BT4B328294/HA1
	FRC0065	380.000	560.000	360.000	360.000	6160	13700	0.40	1.7	2.5	1.6		295
	FRC0066	380.000	620.000	368.000	368.000	7040	13700	0.43	1.6	2.3	1.6		438
	FRC0067	384.175	546.100	400.050	400.050	6440	16600	0.33	2.0	3.0	2.0		310	331149A	HM266449DW/10/10CD
	FRC0068	385.762	514.350	317.500	317.500	4290	12000	0.43	1.6	2.3	1.6		190	331202	LM665949DGW/10/10CD
	FRC0069	395.000	545.000	268.000	288.900	2910	9500	0.48	1.4	2.1	1.4		195	BT4B332824/HA1
	FRC0070	406.400	546.100	268.288	288.925	3910	9500	0.48	1.4	2.1	1.4		185	331465	LM867949DGW/10/11
	FRC0071	406.400	546.100	288.925	288.925	4020	10200	0.48	1.4	2.1	1.4		185	BT4B330650CG	LM767749DW/10/10D
	FRC0072	406.400	565.150	381.000	381.000	6050	15600	0.33	2.0	3.0	2.0		300	BT4B331347AG/HA1	M267949DGW/10/10D
	FRC0073		590.550	400.050	400.050	6930	16600	0.33	2.0	3.0	2.0		370	331133A	EE833161DGW/231/233D
	FRC0074	409.575	546.100	334.962	334.962	4680	13200	0.43	1.6	2.3	1.6		220	BT4B331333/HA1	M667949D/11/11D
	FRC0075	415.925	590.550	434.975	434.975	7210	19300	0.33	2.0	3.0	2.0		395	331160A	M268749DW/10/10CD
	FRC0076	420.000	560.000	437.000	437.000	5830	16300	0.31	2.2	3.3	2.2		285	BT4B328826G/HA1
	FRC0077	420.000	620.000	355.000	355.000	6440	14600	0.31	2.2	3.3	2.2		375	BT4B328374/HA1
	FRC0078	430.000	570.000	336.550	336.550	4950	14000	0.44	1.5	2.3	1.4		240	331192A
	FRC0079	431.800	571.500	279.400	279.400	3690	9650	0.54	1.5	2.0	1.3		200	331125A	LM869449DW/10/10CD
	FRC0080	431.800	571.500	336.550	336.550	4950	14000	0.44	1.5	2.3	1.4		240	BT4B331226/HA1	LM769349DW/10/10D
	FRC0081	431.800	635.000	355.600	355.600	6600	15000	0.33	2.0	3.0	2.0		385	332060	EE931070DGW/250/251XD
	FRC0082	440.000	580.000	420.000	420.000	6050	17600	0.26	2.6	3.9	2.5		300	BT4B328829/HA1
	FRC0083	440.000	650.000	353.500	353.500	6600	15000	0.33	2.0	3.0	2.0		410	332313
	FRC0084	444.500	571.500	336.550	336.550	4950	14300	0.31	2.2	3.3	2.2		215	BT4B328670
	FRC0085	447.675	635.000	463.550	463.550	8250	22000	0.33	2.0	3.0	2.0		485	330608C	M270749ADW/10/10CD
	FRC0086	450.000	580.000	450.000	450.000	6160	19600	0.24	2.8	4.2	2.8		280	BT4B328161/HA1
	FRC0087	450.000	595.000	368.000	368.000	5500	16300	0.33	2.0	3.0	2.0		285	BT4B332773/HA1	M270449DA/10/10D
	FRC0088	450.000	595.000	404.000	404.000	5500	16300	0.33	2.0	3.0	2.0		305	BT4B328365/HA1	M270449DA/410
	FRC0089	457.073	730.148	412.750	419.100	8970	19600	0.40	1.7	2.5	1.6			BT4B328287G/HA1	EE671798DGW/2873/2875D
	FRC0090	457.200	596.900	276.225	279.400	4180	10800	0.48	1.4	2.1	1.4			331169A	L770847DW/10/10D
	FRC0091	457.200	596.900	320.000	320.000	4840	13700	0.44	1.5	2.3	1.4			BT4B334006
	FRC0092	460.000	610.000	360.000	360.000	6050	16300	0.33	2.0	3.0	2.0			331977
	FRC0093	460.000	610.000	400.000	400.000	6270	19300	0.28	2.4	3.6	2.5			BT4B328285
	FRC0094	460.000	625.000	421.000	421.000	7210	20000	0.33	2.0	3.0	2.0			BT4B332502/HA1	M271149DW/10/10D
	FRC0095	462.000	615.950	330.200	330.200	5500	15000	0.40	1.7	2.5	1.6			BT4B328692
	FRC0096	475.000	600.000	368.000	368.000	5280	16600	0.30	2.3	3.4	2.2			BT4B328913G/HA1
	FRC0097	475.000	660.000	450.000	450.000	8580	22400	0.30	2.3	3.4	2.2			BT4B329007/HA1
	FRC0098	479.425	679.450	495.300	495.300	9350	22500	0.33	2.0	3.0	2.0			330886B	M272749DW/10/10D
	FRC0099	482.600	615.950	330.200	330.200	5120	15300	0.33	2.0	3.0	2.0			332096	LM272249DW/10/10D
	FRC0100	482.600	615.950	419.100	330.200	5120	15300	0.33	2.0	3.0	2.0			BT4B331626A/HA1	LM272249DWA/10/10D
	FRC0101	482.600	630.000	420.000	420.000	6600	19300	0.33	2.0	3.0	2.0			BT4B328773G/HA1
	FRC0102	482.600	647.700	417.512	417.512	7210	20000	0.33	2.0	3.0	2.0			331259	M272647DGW/10/10D
	FRC0103	488.950	622.300	365.125	365.125	5610	17300	0.35	1.9	2.9	1.8			BT4B328391G/HA1
	FRC0104	489.026	634.873	320.675	320.675	5120	14600	0.35	1.9	2.9	1.8			331090A	LM772749DW/10/10D
	FRC0105	500.000	720.000	400.000	400.000	8250	20400	0.35	1.9	2.9	1.8			BT4B328524/HA1
	FRC0106	501.650	673.100	400.050	387.350	7210	19300	0.31	2.2	3.3	2.2			BT4B331499G/HA1	EE641198DGW/265/266D
	FRC0107	501.650	711.200	520.700	520.700	10200	27500	0.33	2.0	3.0	2.0			331081A	M274149DW/10/10D
	FRC0108	508.000	762.000	463.550	463.550	10100	23200	0.37	1.8	2.7	1.8			332131	EE531201DGW/300/301XD
	FRC0109	510.000	655.000	377.000	379.000	6270	19000	0.33	2.0	3.0	2.0			BT4B331747A
	FRC0110	514.350	673.100	422.275	422.275	7210	21600	0.31	2.2	3.3	2.2			331157A	LM274449DW/10/10D
	FRC0111	519.112	736.600	536.575	536.575	11400	31000	0.33	2.0	3.0	2.0			331078A	M275349D/10/10D
	FRC0112	520.700	711.200	400.050	400.050	7480	19600	0.33	2.0	3.0	2.0			BT4B331243A/HA1	LM275349DGW/10/10D
	FRC0113	536.575	761.873	558.800	558.800	11700	32000	0.33	2.0	3.0	2.0			BT4B331174/HA1	M276449ADW/10/10D
	FRC0114	540.000	690.000	400.000	400.000	5720	16300	0.33	2.0	3.0	2.0			331978
	FRC0115	540.000	690.000	434.000	400.000	5720	16300	0.33	2.0	3.0	2.0			BT4B334038G/HA3
	FRC0116	558.800	736.600	322.268	322.268	6270	16600	0.35	1.9	2.9	1.8			331165A	EE843220DW/90/91/CD
	FRC0117	558.800	736.600	409.575	409.575	7650	22000	0.35	1.9	2.9	1.8			330993BG	LM377449DW/10/10CD
	FRC0118	558.800	736.600	455.612	457.200	8420	26000	0.33	2.0	3.0	2.0			BT4B331346A/HA1	LM277149DA/10/10D
	FRC0119	560.000	920.000	618.000	618.000	16500	34000	0.40	1.7	2.5	1.6			BT4B328509/HA4
	FRC0120	571.500	812.800	593.725	593.725	12100	32000	0.33	2.0	3.0	2.0			330529B	M278749DW/10/10D
	FRC0121	584.200	730.250	342.900	349.250	5500	17000	0.43	1.6	2.3	1.6			331189
	FRC0122	584.200	762.000	396.875	401.638	7650	22400	0.48	1.4	2.1	1.4			331148A	LM778549DW/10/10D
	FRC0123	584.200	901.700	523.080	539.747	13400	28000	0.33	2.0	3.0	2.0			BT4B328314G/HA1	EE665231DGW/355/356D
	FRC0124	585.788	771.525	479.425	479.425	9900	30000	0.33	2.0	3.0	2.0			331093A	LM278849D/10/10D
	FRC0125	595.312	844.550	615.950	615.950	13400	36500	0.33	2.0	3.0	2.0			331300	M280049D/10/10D
	FRC0126	596.900	980.000	604.838	609.600	16800	36500	0.40	1.7	2.5	1.6			331566
	FRC0127	600.000	870.000	488.000	488.000	12500	29000	0.33	2.0	3.0	2.0			BT4B328350G/HA1
	FRC0128	603.250	857.250	622.300	622.300	14700	40500	0.33	2.0	3.0	2.0			331625	M280249DGW/10/10XD
	FRC0129	609.600	787.400	361.950	361.950	7270	21200	0.37	1.8	2.7	1.8			331175A	EE649242DW/310/311CD
	FRC0130	609.600	813.562	479.425	479.425	10600	30500	0.33	2.0	3.0	2.0			331925	LM280249DW/10/10D
	FRC0131	609.600	863.600	660.400	660.400	15100	41500	0.31	2.2	3.3	2.2			332391	M280349D/10/10D
	FRC0132	620.000	800.000	363.500	363.500	7480	21600	0.37	1.8	2.7	1.8			BT4B328510/HA1
	FRC0133	635.000	901.700	654.050	654.050	15700	45000	0.33	2.0	3.0	2.0			330990A	M281049D/10/10D
	FRC0134	646.112	857.250	542.925	542.925	12100	36500	0.33	23.0	3.0	2.0			BT4B332671/HA1	LM281079DW/10/10D
	FRC0135	650.000	915.000	674.000	674.000	16100	45000	0.33	2.0	3.0	2.0			332307	M281349DGW/10/10D
	FRC0136	650.000	1030.000	560.000	560.000	16500	36500	0.31	2.2	3.3	2.2			BT4B332827AG/HA1
	FRC0137	657.225	933.450	676.275	676.275	17200	49000	0.33	2.0	3.0	2.0			330824A	M281649D/10/10D
	FRC0138	660.000	855.000	319.192	318.480	6160	17000	0.35	1.9	2.9	1.8			BT4B331065AG/HA4	EE749259DGW/334/335D
	FRC0139	660.000	855.000	318.500	318.500	7040	18600	0.35	1.9	2.9	1.8			BT4B328511/HA1
	FRC0140	660.400	812.800	365.125	365.125	6710	22400	0.33	2.0	3.0	2.0			331190	L281149D/10/10CD
	FRC0141	676.000	910.000	620.000	620.000	14200	41500	0.33	2.0	3.0	2.0			BT4B332906/HA4
	FRC0142	679.450	901.700	552.450	552.450	12300	36500	0.33	2.0	3.0	2.0		975	331700	LM281849DW/10/10D
	FRC0143	682.625	965.200	701.675	701.675	17600	50000	0.33	2.0	3.0	2.0		1750	331503G/HA1	M282249D/10/10D
	FRC0144	685.800	876.300	352.425	355.600	7210	22000	0.43	1.6	2.3	1.6		530	331089	EE655271D/10/10D
	FRC0145	685.800	876.300	434.975	355.600	7210	22000	0.43	1.6	2.3	1.6		580	BT4B328704G/HA1	EE655271DWA/345/346D
	FRC0146	708.025	930.275	565.150	565.150	13000	39000	0.33	2.0	3.0	2.0		1030	BT4B332098A/HA4	LM282549D/10/10D
	FRC0147	710.000	900.000	410.000	410.000	8800	26500	0.35	1.9	2.9	1.8		660	331351	L882449DGW/10/10D
	FRC0148	711.200	914.400	317.500	317.500	7040	19300	0.37	1.8	2.7	1.8		525	330882C	EE755281D/360/361CD
	FRC0149	714.375	1016.000	704.850	704.850	18700	53000	0.35	1.9	2.9	1.8		1950	BT4B331358/HA4	M383240D/10/10D
	FRC0150	717.550	946.150	565.150	565.150	13400	40500	0.33	2.0	3.0	2.0		1900	332244	LM282847DW/10/10D
	FRC0151	730.000	940.000	500.000	500.000	12100	36000	0.35	1.9	2.9	1.8		925	331752
	FRC0152	730.250	1035.050	755.650	755.650	20500	58500	0.33	2.0	3.0	2.0		2170	330803A	M283449DW/10/10D
	FRC0153	749.300	990.600	605.000	605.00	15000	45500	0.33	2.0	3.0	2.0		1250	331616	LM283649D/10/10D
	FRC0154	749.300	1066.800	723.900	736.600	20500	58500	0.33	2.0	3.0	2.0		2250	331094A	EE325296D/420/421XD
	FRC0155	750.000	1130.000	690.000	690.000	20100	46500	0.48	1.4	2.1	1.4		2430	BT4B328376/HA4
	FRC0156	762.000	1066.800	723.900	736.600	20500	58500	0.33	2.0	3.0	2.0		2145	331907	M284148DW/11/10D
	FRC0157	762.000	1079.500	787.400	787.400	22400	65500	0.33	2.0	3.0	2.0		2480	330676B	M284249DW/10/10D
	FRC0158	812.800	1143.000	768.350	768.350	22000	63000	0.33	2.0	3.0	2.0		2590	331248
	FRC0159	825.500	1168.400	844.550	844.550	26000	76500	0.33	2.0	3.0	2.0		3050	BT4B331066A/HA4	M285848DW/10/10D
	FRC0160	850.000	1360.000	910.000	910.000	34700	83000	0.35	1.9	2.9	1.8		5440	331069
	FRC0161	863.600	1130.300	717.550	644.525	19800	62000	0.33	2.0	3.0	2.0		2100	BT4B332571/HA4
	FRC0162	863.600	1130.300	669.925	669.925	19800	62000	0.33	2.0	3.0	2.0		1900	BT4B331123B	LM286248DW/10/10D
	FRC0163	863.600	1169.987	844.550	844.550	23800	76500	0.33	2.0	3.0	2.0		2700	BT4B332967/HA4
	FRC0164	863.600	1181.100	666.750	666.750	20900	57000	0.33	2.0	3.0	2.0		2150	BT4B331649/HA4	LM286449D/10/10D
	FRC0165	863.600	1219.200	876.300	889.000	28100	81500	0.33	2.0	3.0	2.0		3470	BT4B330742A/HA4	EE547341D/480/481D
	FRC0166	887.888	1220.000	844.550	844.550	26000	76500	0.33	2.0	3.0	2.0		3080	BT4B332981/HA4	LM286749D/711
	FRC0167	889.000	1219.200	880.000	784.225	27000	78000	0.33	2.0	3.0	2.0		3340	BT4B332602/HA4
	FRC0168	901.700	1295.400	901.700	914.400	30800	86500	0.33	2.0	3.0	2.0		4170	330903A	EE634356D/510/510D
	FRC0169	938.213	1270.000	825.500	825.500	26000	81500	0.35	1.9	2.9	1.8		3230	330726A	LM287649D/10/10D
	FRC0170	939.800	1333.500	952.500	952.500	31900	95000	0.33	2.0	3.0	2.0		4510	BT4B330944AG/HA4	LM287849DW/10/10D
	FRC0171	1001.000	1360.000	800.000	800.000	27500	81500	0.31	2.2	3.3	2.2		3390	BT4B334031/HA1
	FRC0172	1003.300	1358.900	800.100	800.100	27500	81500	0.31	2.2	3.3	2.2		3450	BT4B331372/HA4
	FRC0173	1004.634	1308.100	812.800	730.250	24600	76500	0.33	2.0	3.0	2.0		3060	BT4B332720/HA4
	FRC0174	1070.000	1400.000	889.762	889.762	30300	100000	0.33	2.0	3.0	2.0		3730	BT4B328100/HA4	JLM288449DW/410
	FRC0175	1080.000	1450.000	950.000	950.000	33600	108000	0.33	2.0	3.0	2.0		4450	BT4B331559/HA4	JLM288449DW/410
	FRC0176	1139.825	1509.712	923.925	923.925	33600	108000	0.31	2.2	3.3	2.2		4840	BT4B331334/HA4
	FRC0177	1200.150	1593.850	990.600	890.000	38000	125000	0.33	2.0	3.0	2.0		5635	331440	LM288949D/10D
	FRC0178	1250.000	1550.000	890.000	890.000	30300	114000	0.33	2.0	3.0	2.0		3820	BT4B328819G/HA1

江蘇帝蒙德軸承有限公司

產品中心 Product Center

四列圓錐滾子軸承英制系列

四列圓錐滾子軸承英制系列

產品尺寸與參數
